Online Effluent Monitoring System

Online Effluent Monitoring System

10000 INR/Piece

Product Details:


Price And Quantity

  • 10000 INR/Piece
  • 1 Piece

Trade Information

  • 10000 Piece Per Day
  • 2 Days

Product Description

Online Effluent Monitoring Sytem

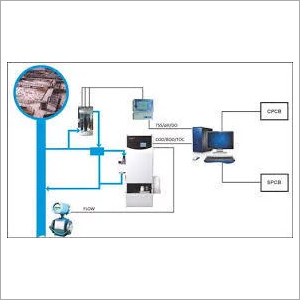

Real Time Data Acquisition System (COD BOD TSS and pH)

Basic Characteristics of OCEMS System

—  Digital communication with distance computer for data acquisition /recording /reporting

—  DAS(Data acquisition System) Defines the logging of digital data from analyzer.

—  Data Transferred directly from analyzer (no in between logic) to CPCB/SPCB.

—  Data validated its encryption format (Tamperproof).

—  The system records  all monitored sample values and transfer 30 Minutes average value to DAHS.

—  System do have provision to access the momentarily values as and when required.

—  Data Validation Protocol inbuilt with data quality codes to define specification in DAS /Data Logger.

—  Key Features

—  Non Volatile memory in data logger for recording upto 2 Years data.

—  Calibration Record will be saved in Portal and can be retrieved any time

—  Statistical data analysis (customizable) for average, min, max, diurnal variation, comparison of formats of different locations , user selectable time formats(Hourly ,daily, weekly  monthly) etc. in graphical and tabular formats compatible to MS- Excel, MS-Word, *.txt etc.

—  Automated data generation, data pick up, data transmission; data integration at server end.

—   The submitted data available to the Central Pollution Control Board /SPCB  for immediate corrective action.

—  Raw data to be transmitted with provision to record reasons for delay including display of the same.

—  Data validation is permitted only through the administrator and data changes recorded with date and time stampings.

—  The data submitted electronically will be available to the data generator through internet, so that corrective action if any required due to submission of erroneous data can be initiated by the industry.

—  The software is capable to verify the data correctness which means at any given point of time the regulatory authorities/data generator should be able to visualize the current data of any location’s specific parameter.

—  Real-time display of live data and graphs

—  Capability of comparison of data with respect to standard / threshold values

—  Alarm & Auto report generation, auto mail generation etc.

—  Providing diagnostics of the instruments installed at the station

—  Data validation incorporation in the software with two stage/three stage validation

—  Providing calibration database for further correction of data;

—  Database correction with time stampings;

—  Providing remote access to calibration and configuration (Instrument to have this capability)

—  Display of data on web browser and depiction of stations with geo-reference on maps

—   Data transmission from any system operational at different locations.

—  Capability to develop the software protocol for data transmission from any system available in the field; Data availability may be in analogue or digital form or in RS 232

—  Channel configuration for range, units etc.'

—  Data transmission from different media like, GPRS, CDMA, Normal Phone line, Data cards Broadband, LAN, 3G etc. (at least any two media supported)

—  Providing data in export format on continuous basis through central / station computer system to other system;

—   Transmitting data to different locations as per EC, CTE/CTO, and other directives in force.

—  Responsible to install all the required links for continuous data transmission on real-time basis and ensure transmit of the data to Central Pollution Control Board /PPCB

—   SMS & Email alerts based on CPCB qualifying criteria

·         provision for Multi-Server data transmission from each station without intermediate PC or plant server.

·         provision to send system alarm to central server in case any changes made in configuration or calibration

·         provision to record all operation information in log file.

·         provision for independent analysis, validation, calibration & data transmission.
